Ricon® S – connectors for high capacity standard connections
Ricon® S – connectors for high capacity standard connections
Note: The required number of screws for the connector RICON®S should be based on previously determined characteristic values of loads. You can verify this using our user-friendly pre-dimensioning tool, or please contact our technical support team.

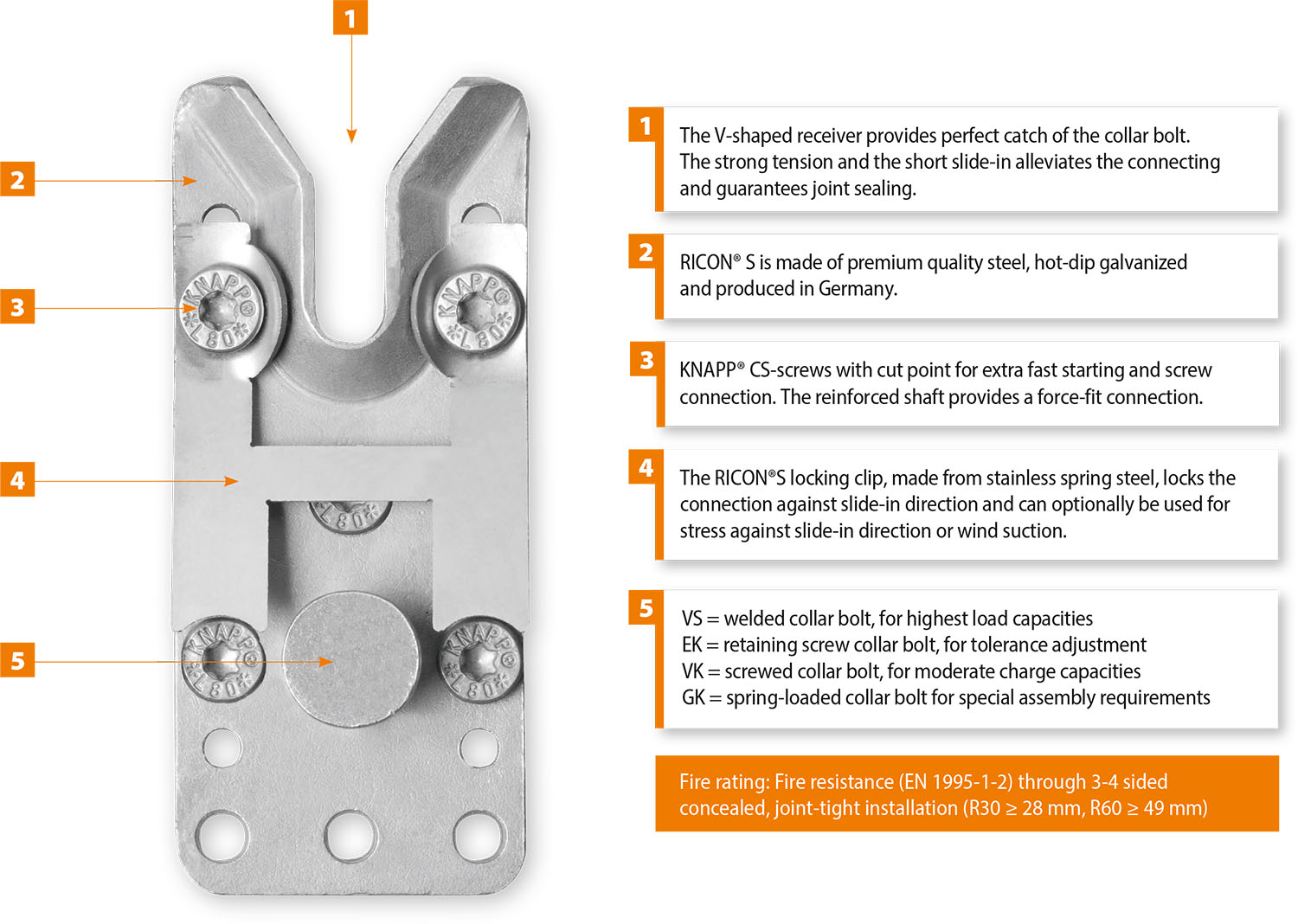

1
The V-shape moulding provides perfect catch of the collar bolt. The strong tension and the short slide-in alleviates the connecting and guarantees joint sealing.
2
RICON® S is made of premium quality steel, hot-dip galvanized and produced in Germany.
3
KNAPP® CS-screws with cut point for extra fast starts and screwing. The reinforced shaft provides force-fit connection.
4

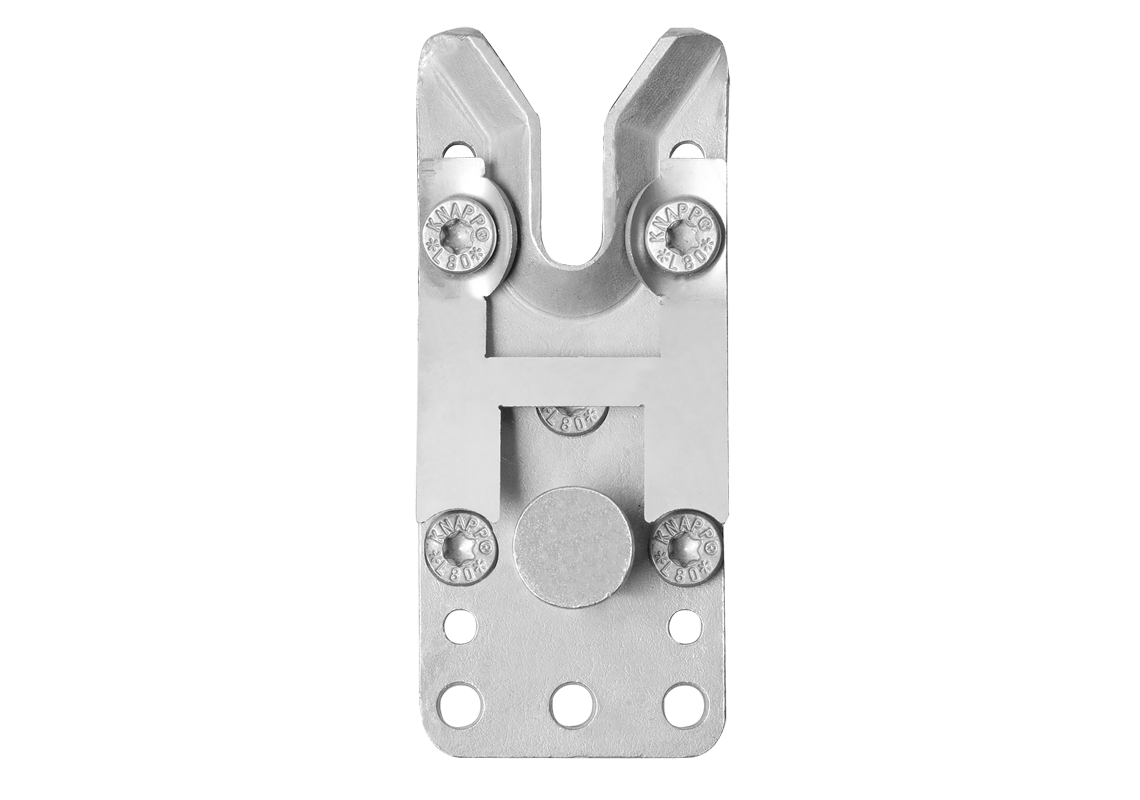

The RICON®S clip lock, made from stainless spring steel, locks the connection against slide-in direction and can optionally be used for stress against slide-in direction or wind suction.
5

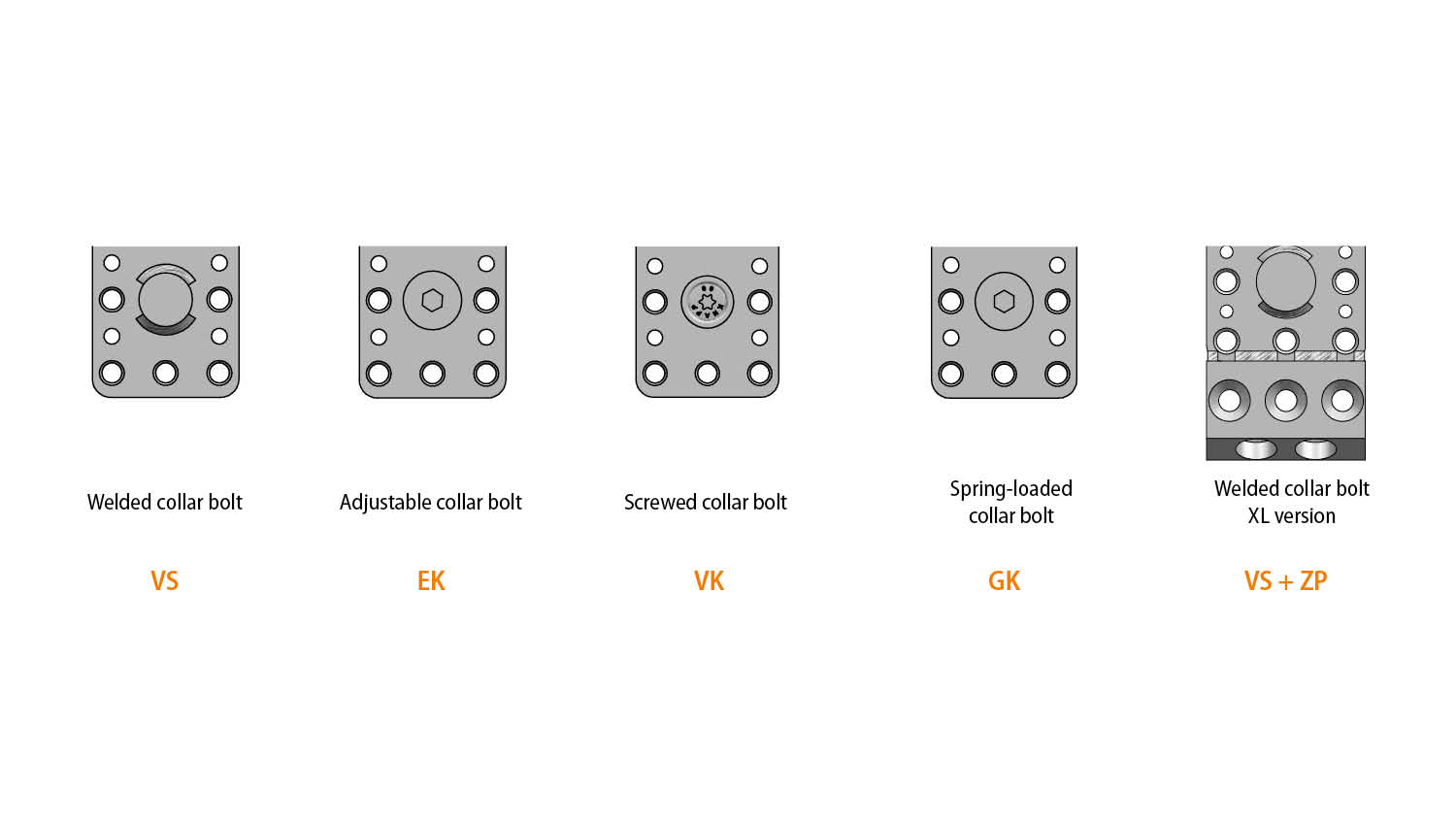

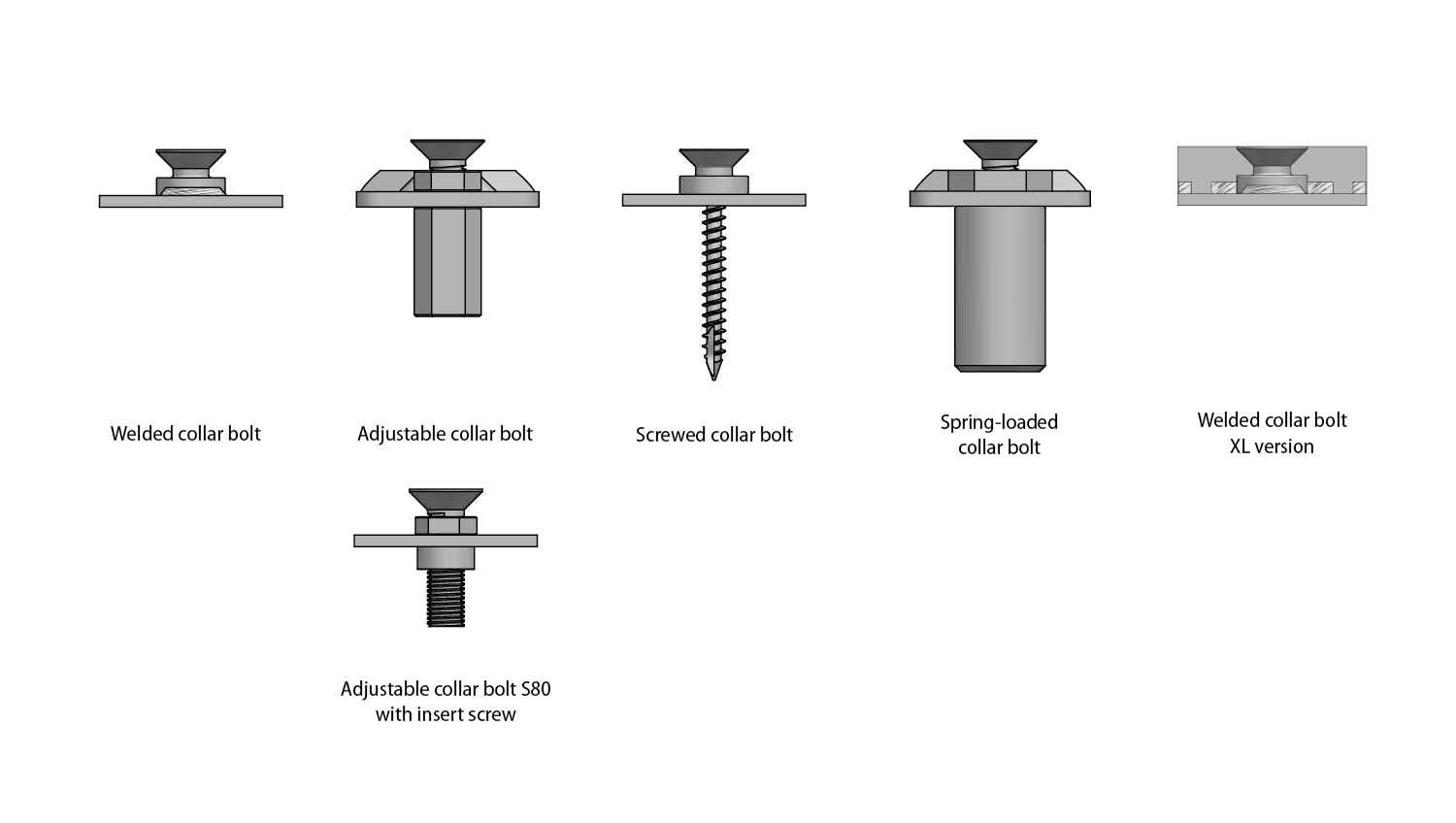

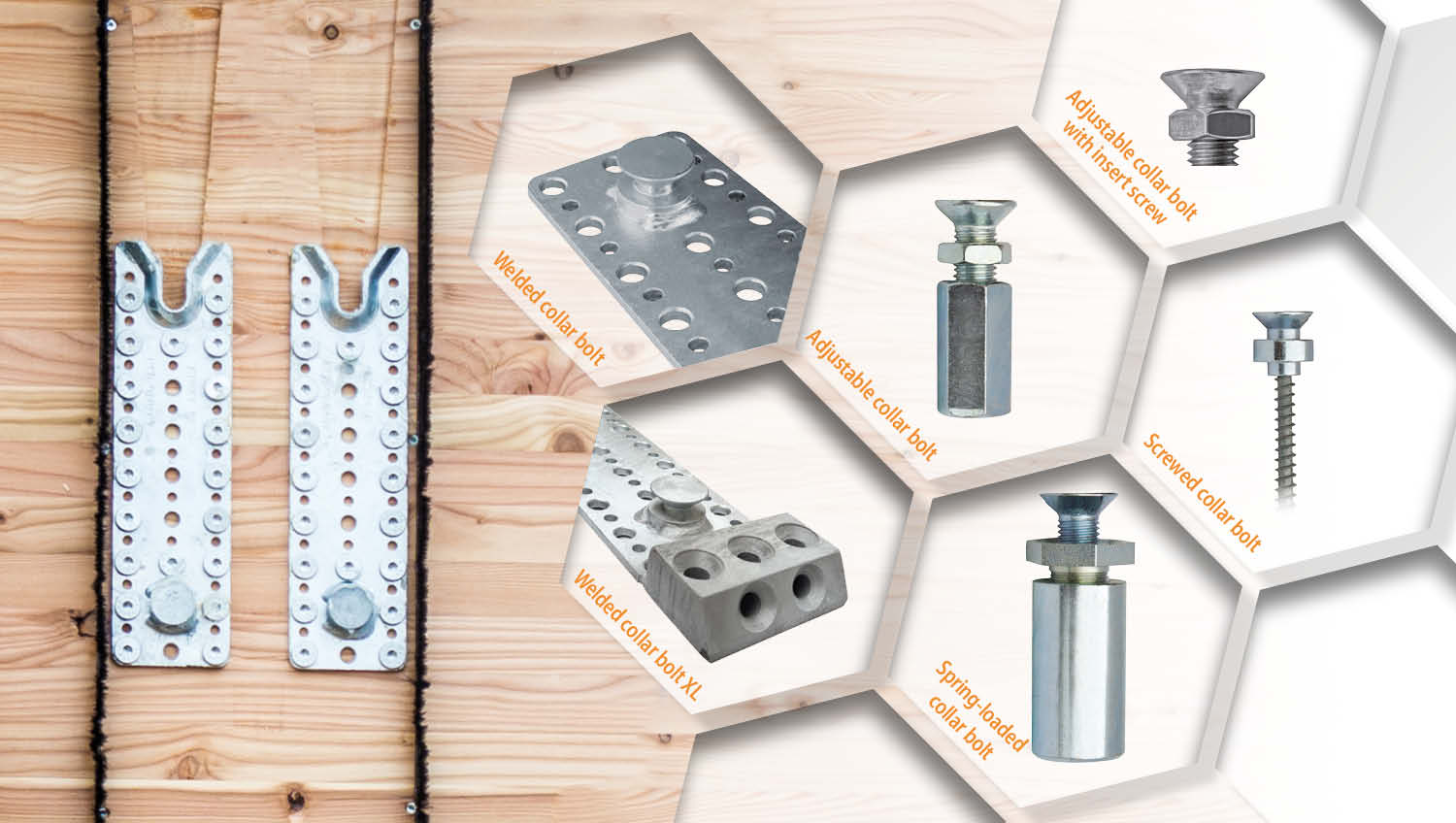

There are different versions of the collar bolt available for RICON® S which offers four different connection options.
The V-shape moulding provides perfect catch of the collar bolt. The strong tension and the short slide-in alleviates the connecting and guarantees joint sealing.
RICON® S is made of premium quality steel, hot-dip galvanized and produced in Germany.
KNAPP® CS-screws with cut point for extra fast starts and screwing. The reinforced shaft provides force-fit connection.
The RICON®S clip lock, made from stainless spring steel, locks the connection against slide-in direction and can optionally be used for stress against slide-in direction or wind suction.
There are different versions of the collar bolt available for RICON® S which offers four different connection options.

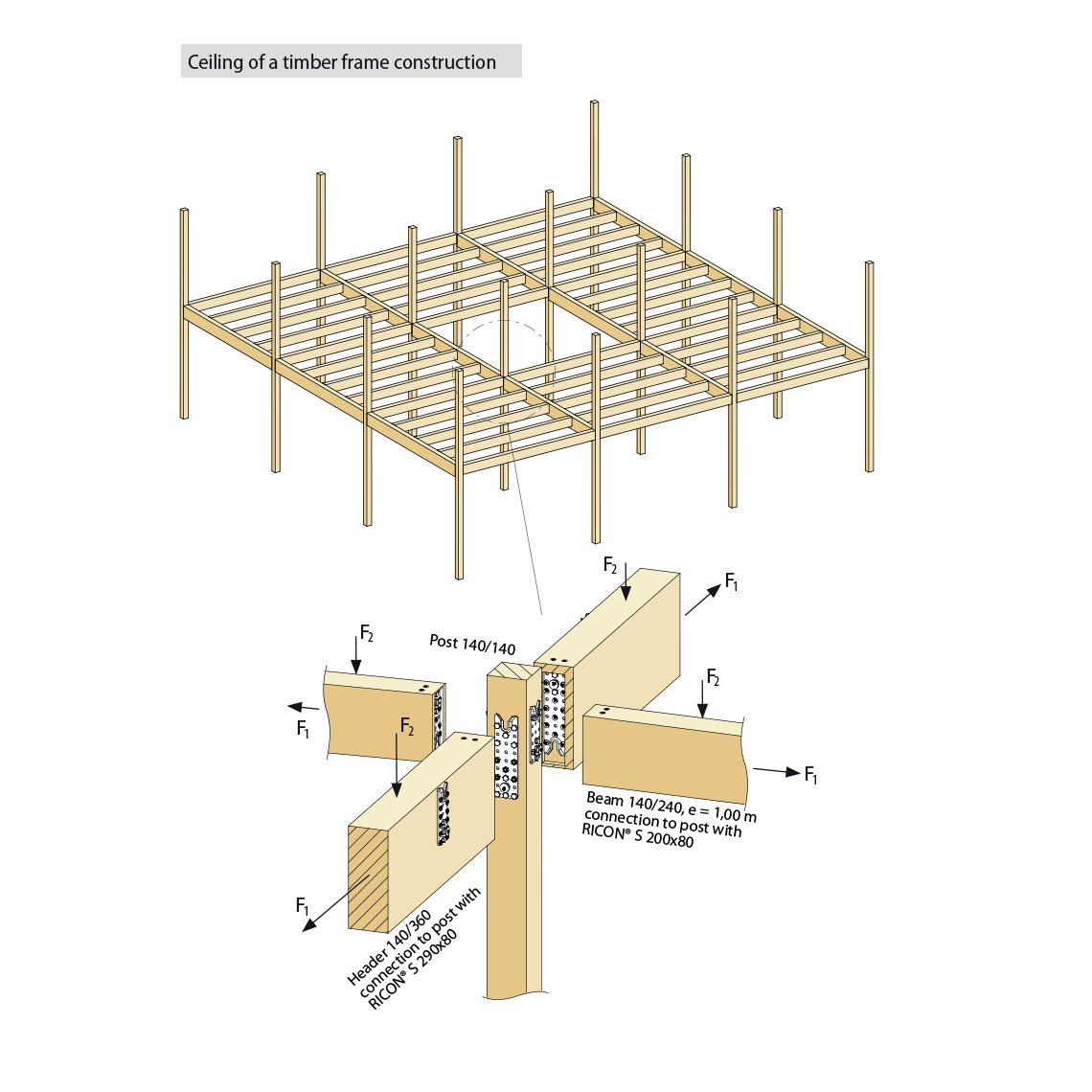

RICON® S | The connector for main and secondary beam up to 230 kN*
System advantages:

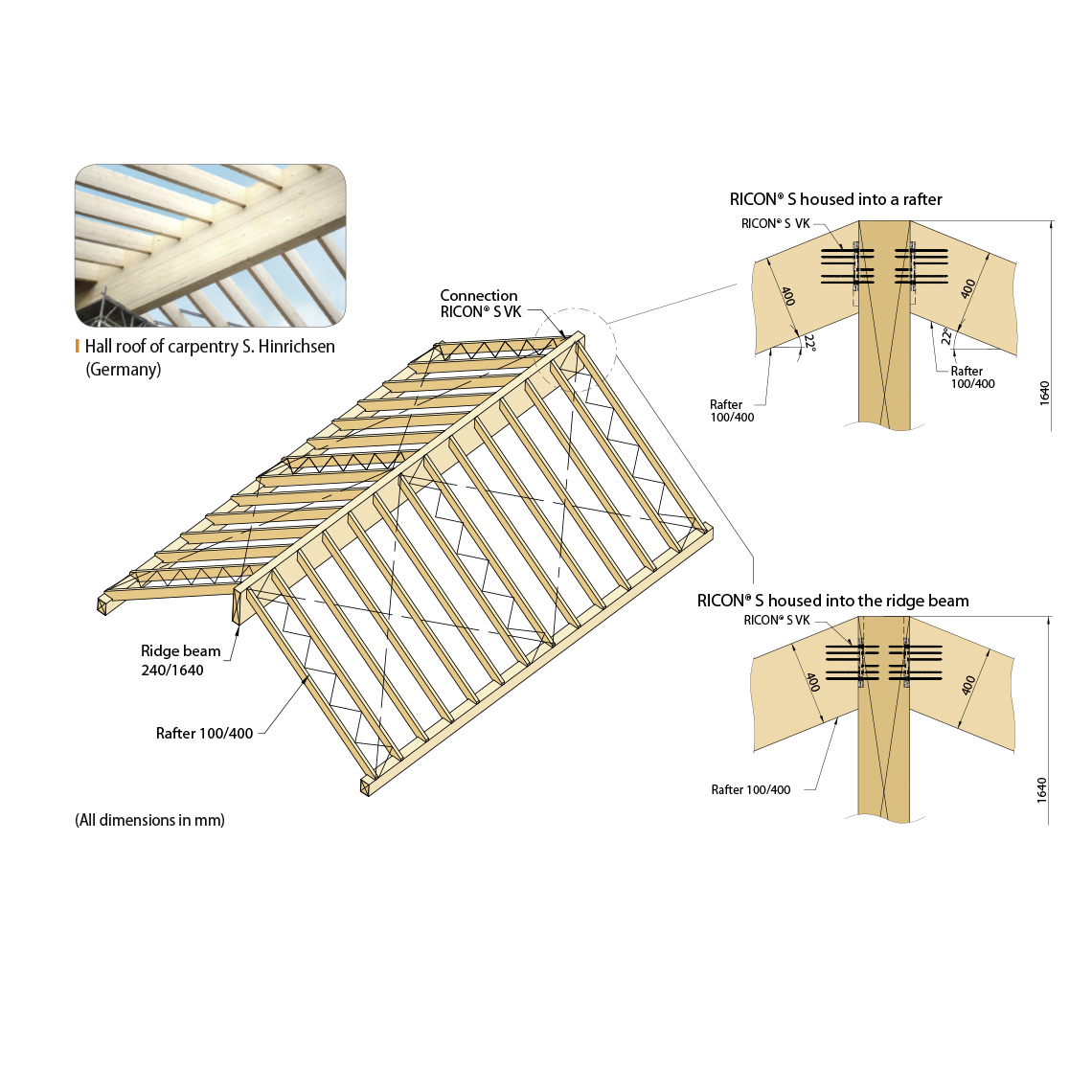

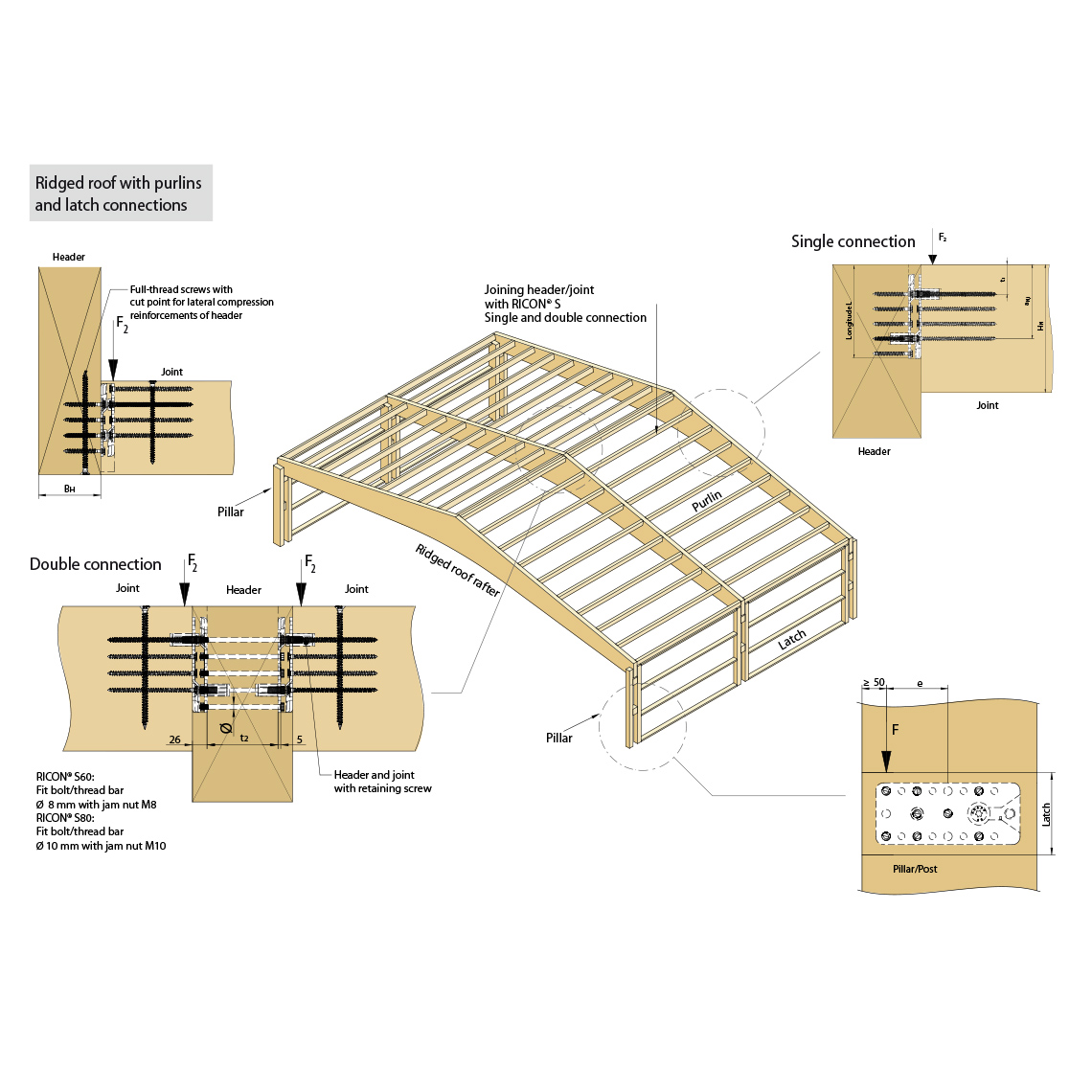

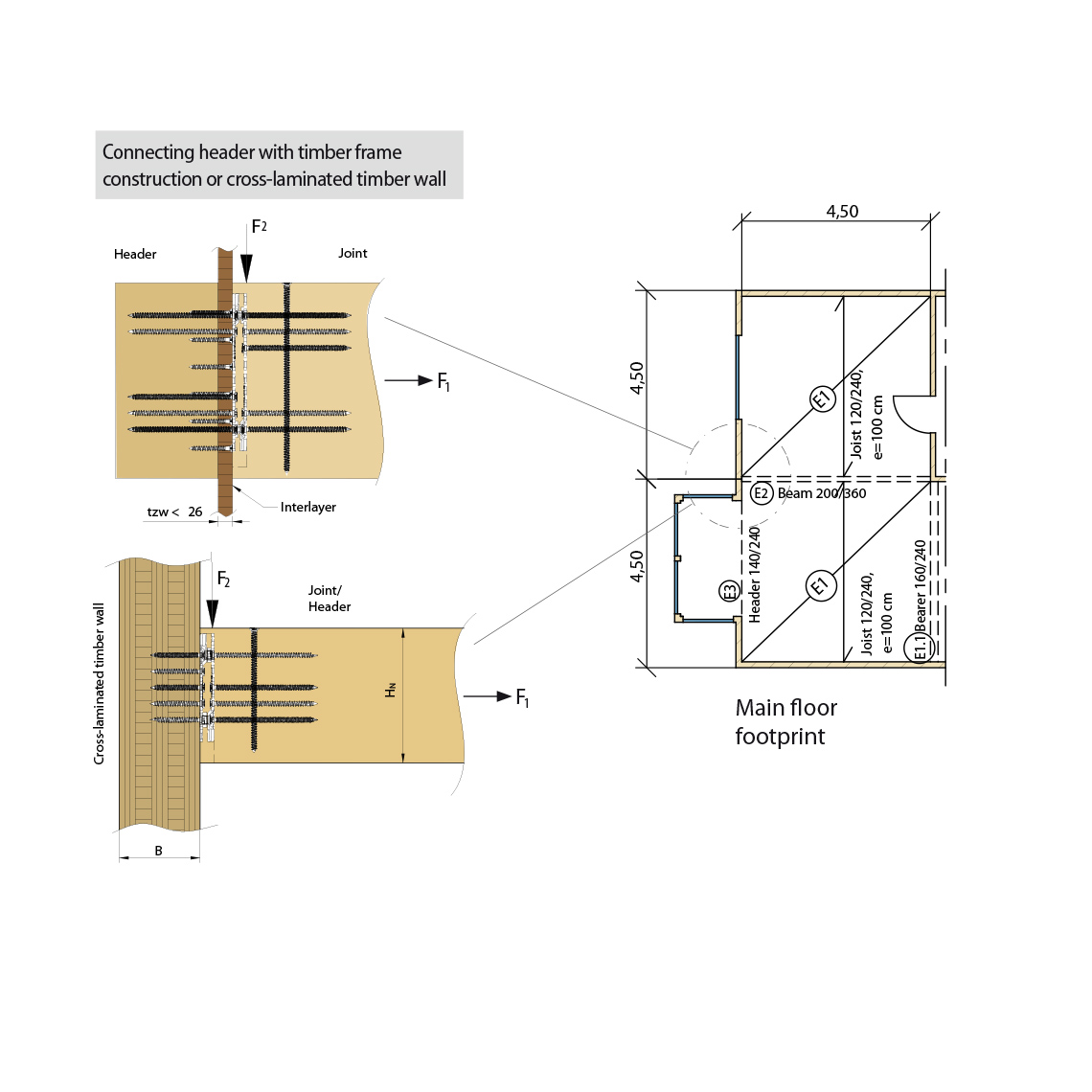

- Connector for timber frame, wood frame buildings and halls
- Timber width from 100 mm upwards
- Universally applicable to timber, steel or concrete
- Simple screwing without predrilling
- Easy hooking by large V-shaping – only 3,5 cm hooking way
- Three- and four-sided concealed connection
- High fire resistence through three- and four-sided concealed mounting
- Adjustable collar bolt up to 5mm length tolerance at full load capacity
- Optional – securing against the insertion direction with clip lock
- NEW: ETA additionally with hardwood material

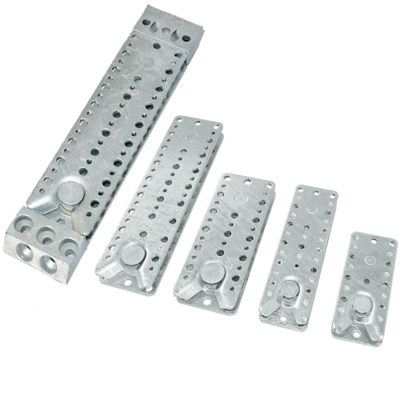

| Knapp ConnectorRICON S VS | Characteristic values [kN]F2,Rk |
| RICON S 140/60 VS minH: 10 SK 8x80J: 10 SK 8×160 | 28,4 |
| RICON S 140/60 VS maxH: 10 SK 8x80J: 10 SK 8×240 | 32,8 |
| RICON S 200/60 VS minH: 16 SK 8x80J: 16 SK 8×160 | 43,3 |
| RICON S 200/60 VS maxH: 16 SK 8x80J: 16 SK 8×240 | 50,0 |
| RICON S 200/80 VS minH: 16 SK 10x100J: 16 SK10x200 | 61,3 |
| RICON S 200/80 VS maxH: 16 SK 10x100J: 16 SK10x300 | 70,4 |
| RICON S 290/80 VS minH: 25 SK 10x100J: 25 SK10x200 | 91,6 |
| RICON S 290/80 VS maxH: 25 SK 10x100J: 25 SK10x300 | 105,2 |
| RICON S 390/80 VS + ZP maxH: 28 SK 10×100; + 2 SK 10x400J: 28 SK 10×200 + 2 SK 10×450 | 141,5 |
| RICON S 390/80 VS + ZP maxH: 28 SK 10×100; + 2 SK 10x400J: 28 SK 10×300 + 2 SK 10×450 | 156,5 |
Charact. load carrying capacity F2,Rk in insertion direction applies only to the use of original KNAPP® cs-screws according to ETA 10/0189.Werte der Deutschen Bauzulassung weichen geringfügig ab und sind auf Anfrage erhältlich. VS = Verschweißter Kragenbolzen, VK = Verschraubter Kragenbolzen, EK = Einstellbarer Kragenbolzen, GK = Gefederter Kragenbolzen.
