FIYU® LOCK – Groove connector for furniture and fittings
FIYU® – easy to connect, safe, fast and reversible

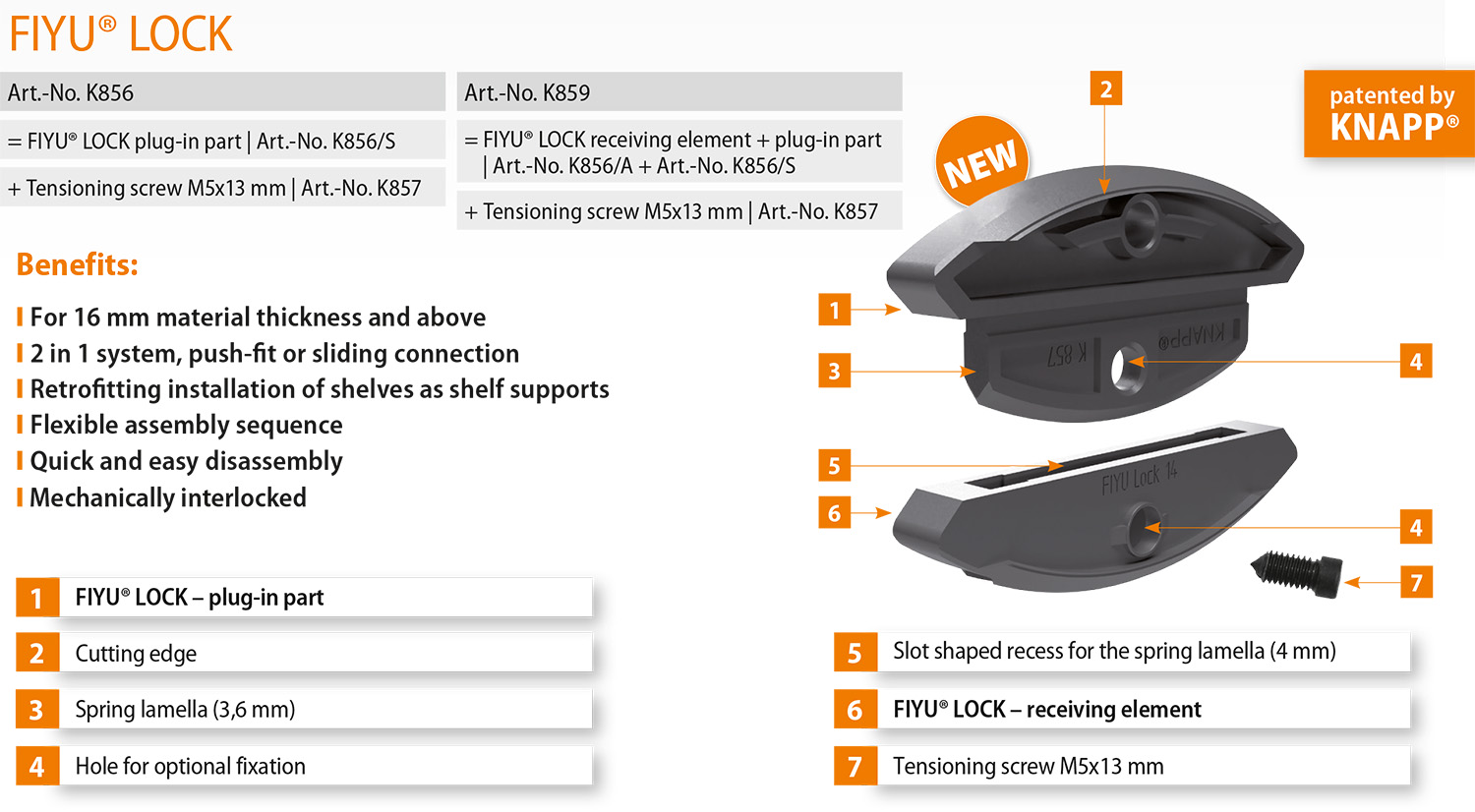

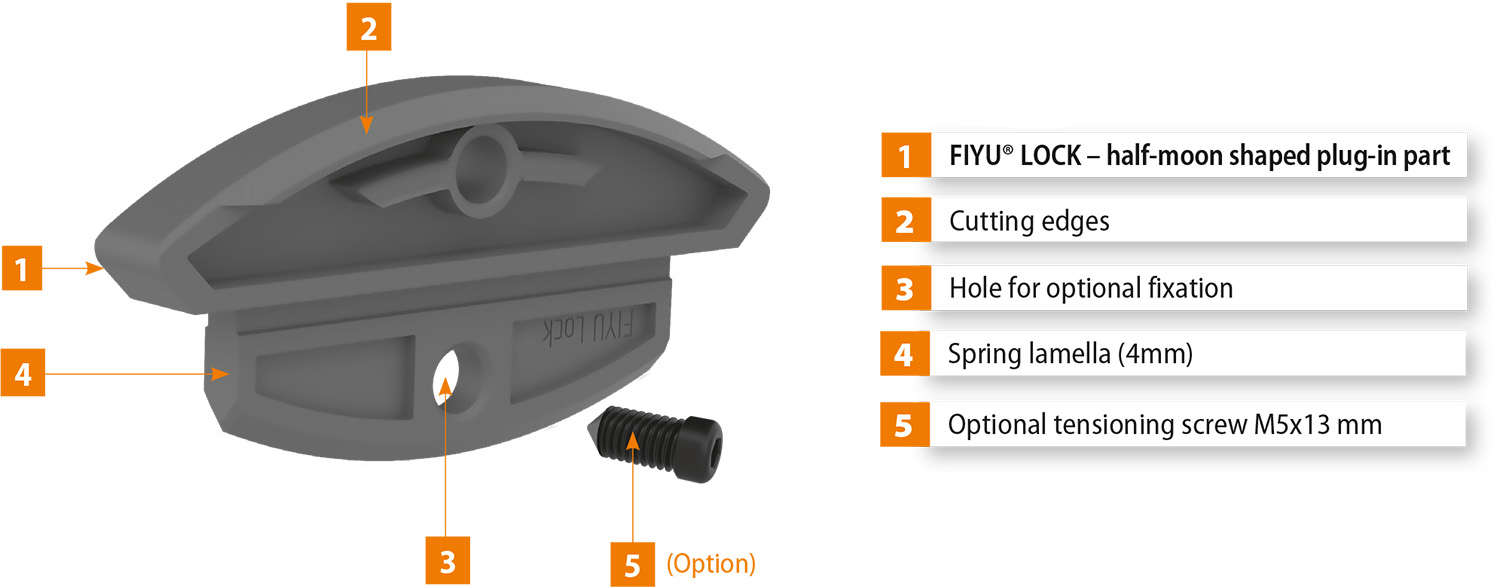

FIYU® – the connectors with cutting edges have clever details: Thanks to well thought-out details, it not only connects securely and exceptionally quickly, it is also ideal for countless areas of application. It connects cabinand parts from an angle of 0 to 135°. The FIYU® LOCK is a particularly suitable solution for retrofitting shelves. It even holds all by itself – saving time and money. Optionally, the connector can fix the components with a tensioning screw.
FIYU® FAST is a self-tensioning cabinet and connector that can connect miter joints and 90° joints firmly and detachably. It can also be used as a gluing aid.
| Applications | For cabinet units, fixed shelves, mitre-cut junctions and intermediate uprights, or for fixing trim, removable covers and surface-mounted mouldings. |
| Advantages | Concealed, self-tightening, re-assemblable tongue and groove connector, immediately ready for use. |
| Suitable materials | All softwood and uncoated plastic materials (FIYU® FAST) ; All woods, synthetic materials (FIYU® LOCK). |
| Installation | With CNC, flat dowel machine, adjust depth setting accurately. |
| Mounting | Insert plug-in part and holding part into milled groove, and clip the components together. |
| Accessories | Grub screw FIYU® 6×12 mm (FIYU® FAST ) | Art.-No. Z428, Tensioning screw M5x13 mm (FIYU® LOCK) | Art.-No. K857, Allen key with ball end | Art.-No. K647 |
