RICON® Universal wooden connector made of stainless steel

RICON® Universal wooden connector made of stainless steel

1

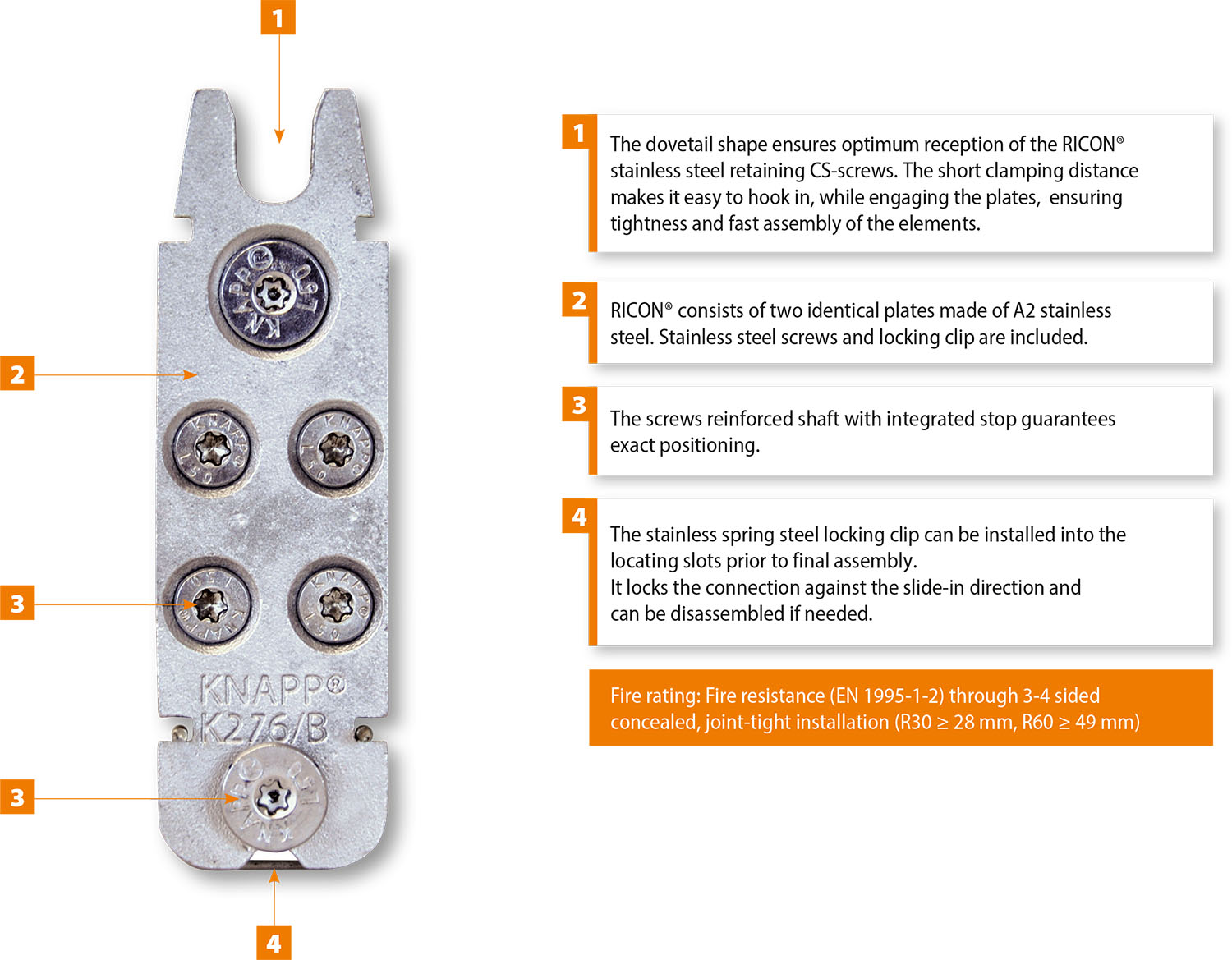

The dovetail joint catches the CS-screws perfectly and pushes together the connector. It also ensures tightness.
2

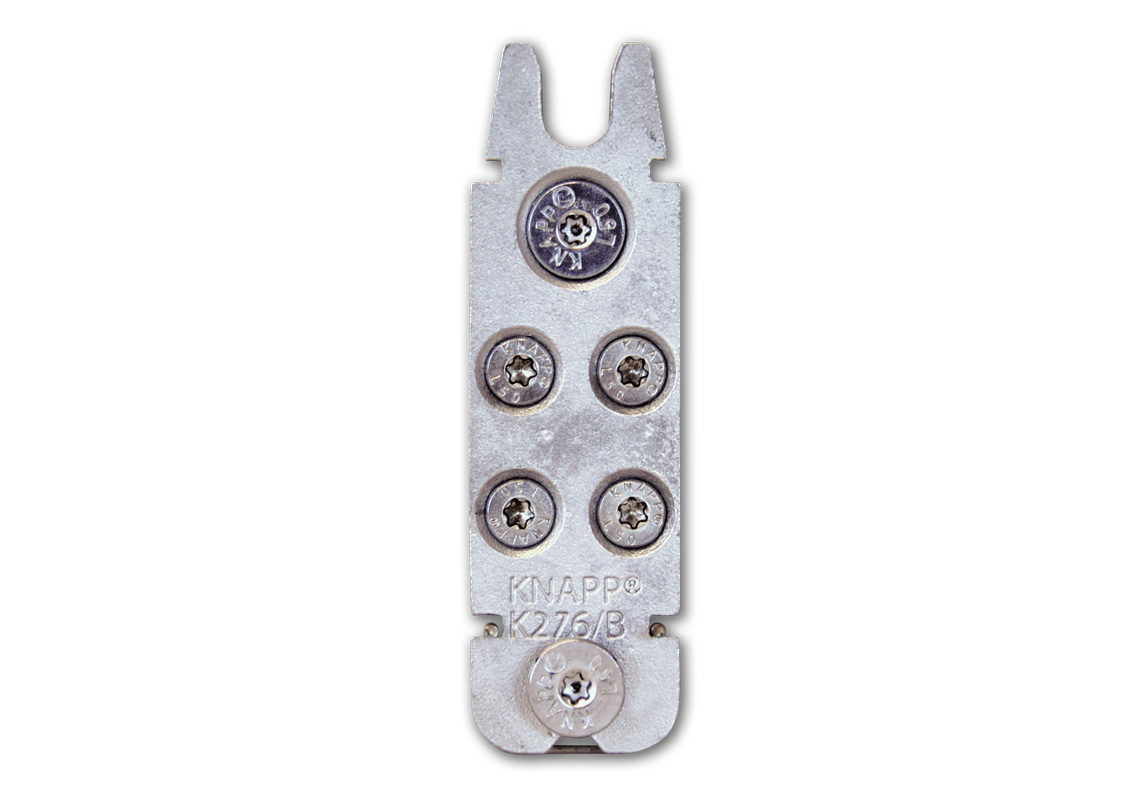

RICON® consists of two identical parts and is made of stainless steel.
3
The reinforced shaft with integrated stop guarantees precise positioning.
4
Clip-in the stainless spring steel stirrup into the locating slots prior to final assembly. It locks the connection against the slide-in direction and can be released again.
The dovetail joint catches the CS-screws perfectly and pushes together the connector. It also ensures tightness.
RICON® consists of two identical parts and is made of stainless steel.
The reinforced shaft with integrated stop guarantees precise positioning.
Clip-in the stainless spring steel stirrup into the locating slots prior to final assembly. It locks the connection against the slide-in direction and can be released again.

RICON® | Universal wooden connector made of stainless steel

Materials and applications:

  • Particular woods, such as oak, douglas fir, larch and impregnated woods, such as Accoya
  • Indoor and outdoor: furniture, balcony, deck, carport, playground and sports equipment, pergola and other buildings with static standards DIN 1052

Features:

  • Slim profile – timber width from 20 mm upwards
  • Universal connection to all wood materials, indoor and outdoor, steel, concrete for sizes 100×40 and 100×30
  • Versatile – can be used for single joint and double joint connection
  • Flexible – assembly can be from the outside and inside
  • Adjustable – to balance out possible joint tolerances
  • Tested, patented and registered for approval
Knapp Connector
Stainless steel
Characteristic values [kN]
F2,Rk
RICON 80/40 A2
H: 2xSK 8×50, 2xSK5x50
J: 2xSK8x80; 2xSK5x80
7,5
RICON 160/40 A2
H: 2xSK 8×50, 10xSK5x50
J: 2xSK8x80; 10xSK5x80
17,4
RICON 60/30 A2
H: 1xSK 8×50, 2xSK5x50
J: 1xSK8x80; 2xSK5x80
5,2
RICON 80/30 A2
H: 2xSK 8×50, 2xSK5x50
J: 2xSK8x80; 2xSK5x80
7,5
RICON 100/30 A2
H: 2xSK 8×50, 4xSK5x50
J: 2xSK8x80; 4xSK5x80
10,4
RICON 120/30 A2
H: 2xSK 8×50, 6xSK5x50
J: 2xSK8x80; 6xSK5x80
13,2
RICON 140/30 A2
H: 2xSK 8×50, 8xSK5x50
J: 2xSK8x80; 8xSK5x80
16,1
RICON 160/30 A2
H: 2xSK 8×50, 10xSK5x50
J: 2xSK8x80; 10xSK5x80
17,4
RICON 70/20 A2
H: 3xSK5x50
J: 3xSK5x80
4,8
RICON 66/16 A2
H: 3xSK5x50
J: 3xSK5x80
4,8

Characteristic values F 2,Rk in the direction of insertion apply only with the use of original KNAPP® CS-screws according to ETA 10/0189 in GL24h. Values calculated according to ETA 10-0189 – test values follow from engineering office Blaß & Eberhard.
