RICON®-system rampa-fitting connection (EAR)

RICON®-system rampa-fitting connection (EAR)

1
The dove-tail stamping makes it very easy to catch the CS-screws and slide-in the connector. It also ensures gap free assembly.
2
RICON® consists of two identical parts. It is made of premium quality steel and is hot-dip galvanized and made in austria.
3
Ø = 5 mm CS-screws. Adjustable Ø = 8 mm RICON® CS-holding screws compensate timber tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
4
Ø = 5 mm CS-screws. Adjustable Ø = 8 mm RICON® CS-holding screws compensate timber tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
5
Before final assembly, clip in the stainless spring steel stirrup into the locating slots. It locks the connection against the slide in direction and can be released again.
The dove-tail stamping makes it very easy to catch the CS-screws and slide-in the connector. It also ensures gap free assembly.
RICON® consists of two identical parts. It is made of premium quality steel and is hot-dip galvanized and made in austria.
Ø = 5 mm CS-screws. Adjustable Ø = 8 mm RICON® CS-holding screws compensate timber tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
Ø = 5 mm CS-screws. Adjustable Ø = 8 mm RICON® CS-holding screws compensate timber tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
Before final assembly, clip in the stainless spring steel stirrup into the locating slots. It locks the connection against the slide in direction and can be released again.

RICON® | The connector for main and secondary beam joints up to 26 kN

The main and secondary beam joint connector RICON® consists of two identical connector plates made of steel. An optional lock can be installed to latch the connector. The RICON® is recessed and non-visible, and can be used with timber widths as little as 50 mm. RICON® is available in a single connector set and double connector set for cross joints in six sizes 60, 80, 100, 120, 140 and 160/40.

NEW and improved:

  • Better grip on the timber by means of a star-shaped embossing on the backside of the connector plate.
  • Mounting also on intermediate layers up to 26 mm (i.e. OSB).
  • Special coating for increased corrosion resistance for indoor swimming pools, riding halls, stables and farm buildings (tested).
  • Approval for off-centered glass loads up to 860 kg given by an additional reinforcing plate.
  • ETA extension for Hardwood (i.e. oak, larch, beech)
  • Concealed – connectors are recessed and non-visible.
  • Disassembly and reassembly possible if needed.
  • High degree of prefabrication – fast and exact assembly on-site.
  • Universal – connectors can fasten timber to timber, to steel and to concrete components.
  • Unique – can also be used for polygon façades.

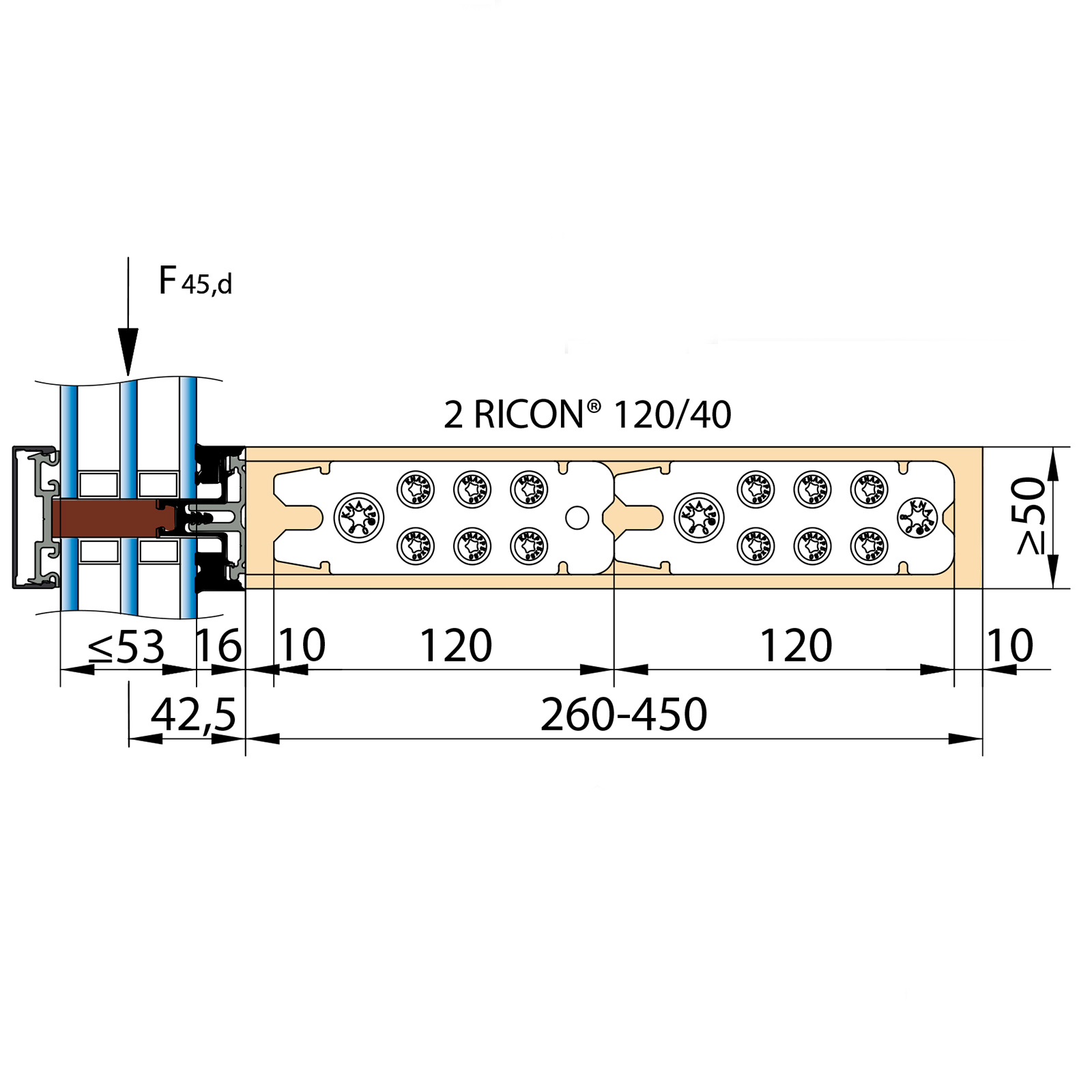

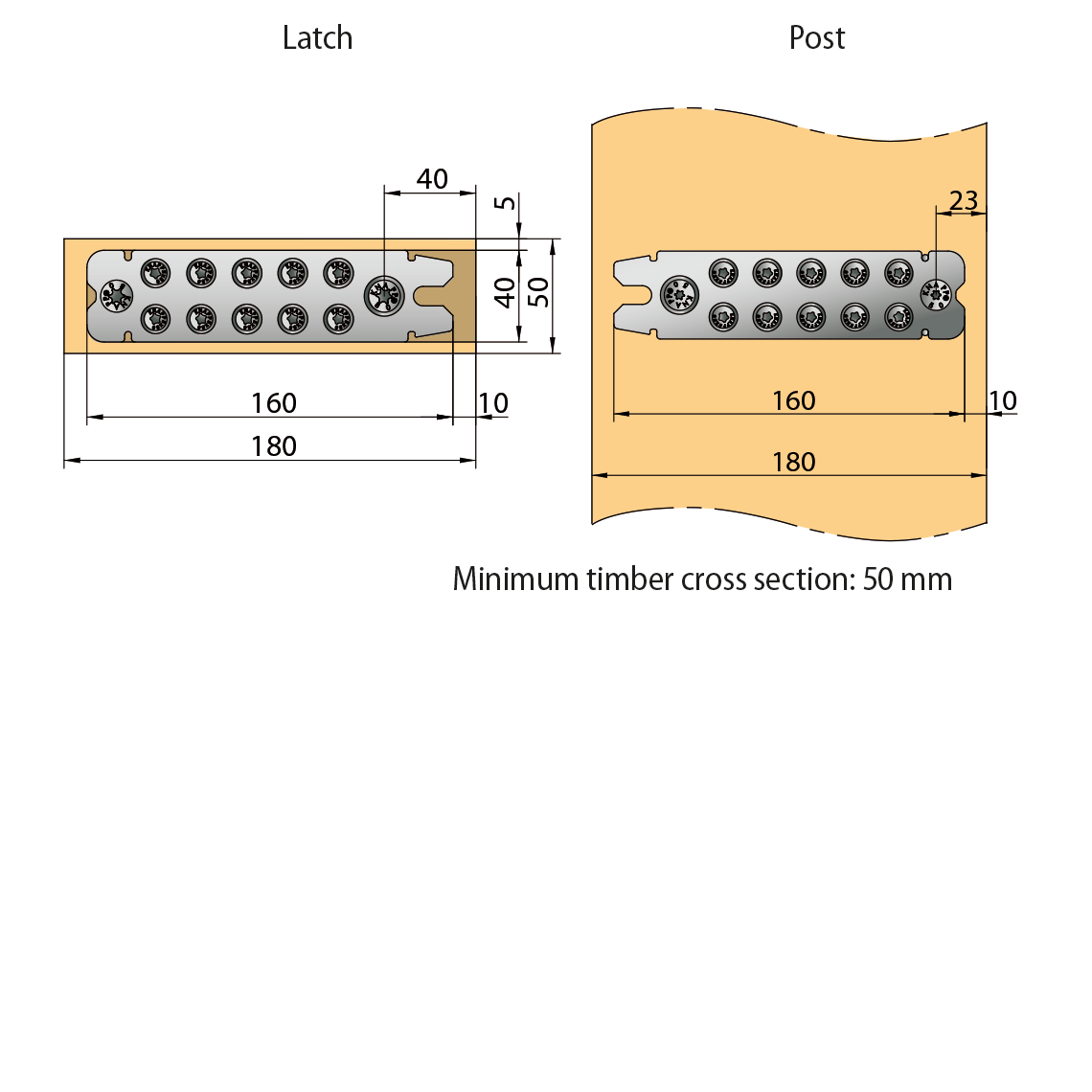

  • Slim timber dimension – can be mounted on timber with thickness as little as 50mm and up to 450mm.
  • Labor efficient – no additional screwing or nailing needed when assembled on site.
  • Adjustable – can be adjusted according to joints intervals and construction tolerances.

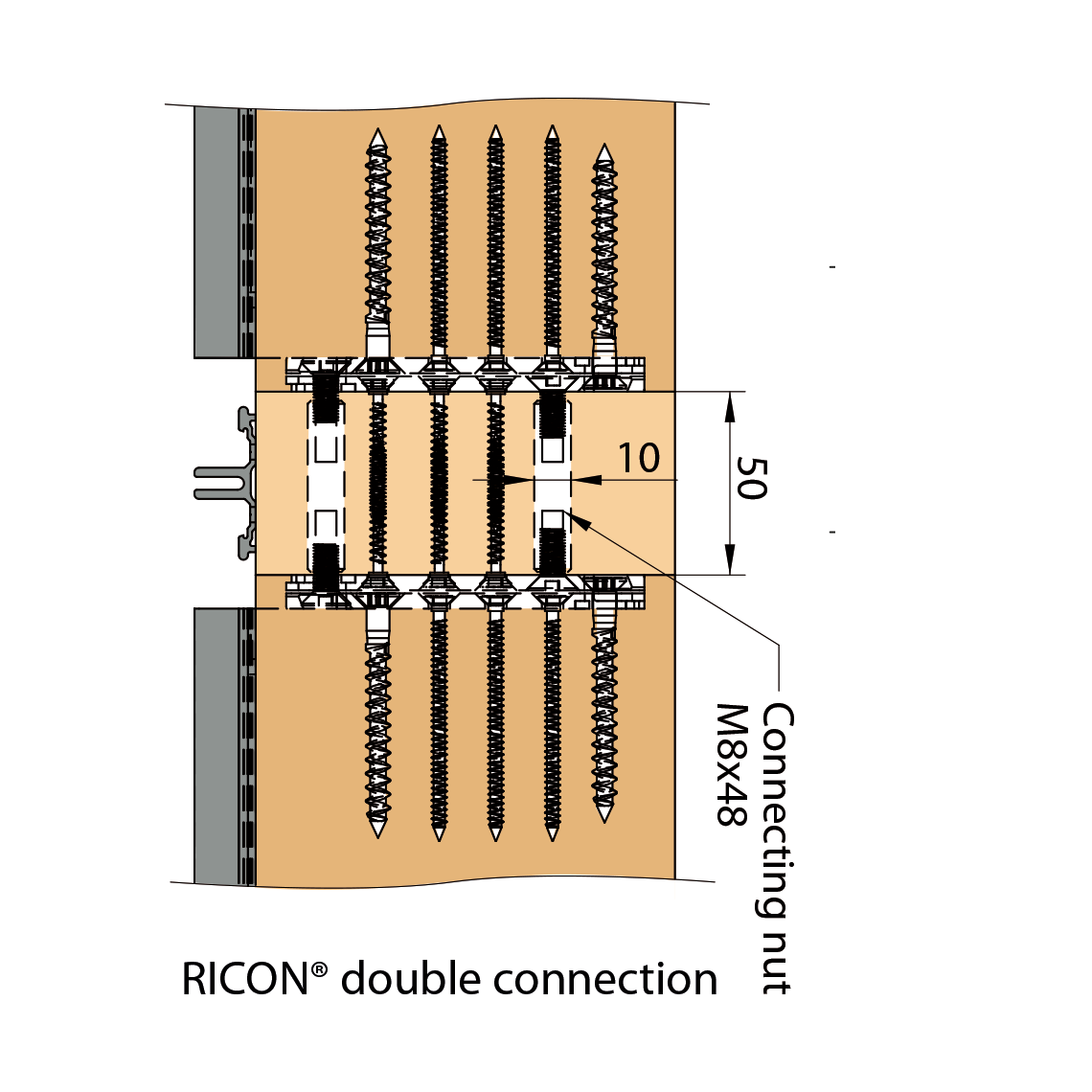

  • Versatile – can be used for single joint and double joint applications.
  • Flexible – direction of assembly can even be from the outside towards the inside and from down upwards.
  • Safety – fire resistance according to (DIN 4102-2) by 4-sided concealed mounting (R30 ≥ 20 mm, R60 ≥ 40 mm).
  • Neutral – can be used in combination with different exterior profile systems such as RP, Schüco, MBJ, Gutmann, RAICO, Stabalux, … etc.

*Charact. load carrying capacity F2,Rk in insertion direction applies only to the use of original KNAPP® cs-screws according to ETA 10/0189. EAR = single connection with screwed insert

6,3 [kN]*

RICON 60/40 EAR

10,3 [kN]*

RICON 80/40 EAR

15,4 [kN]*

RICON 100/40 EAR

19,7 [kN]*

RICON 120/40 EAR

24,1 [kN]*

RICON 140/40 EAR

26 [kN]*

RICON 160/40 EAR
