GIGANT – connectors for main and secondary beam structures

GIGANT – connectors for main and secondary beam structures

1

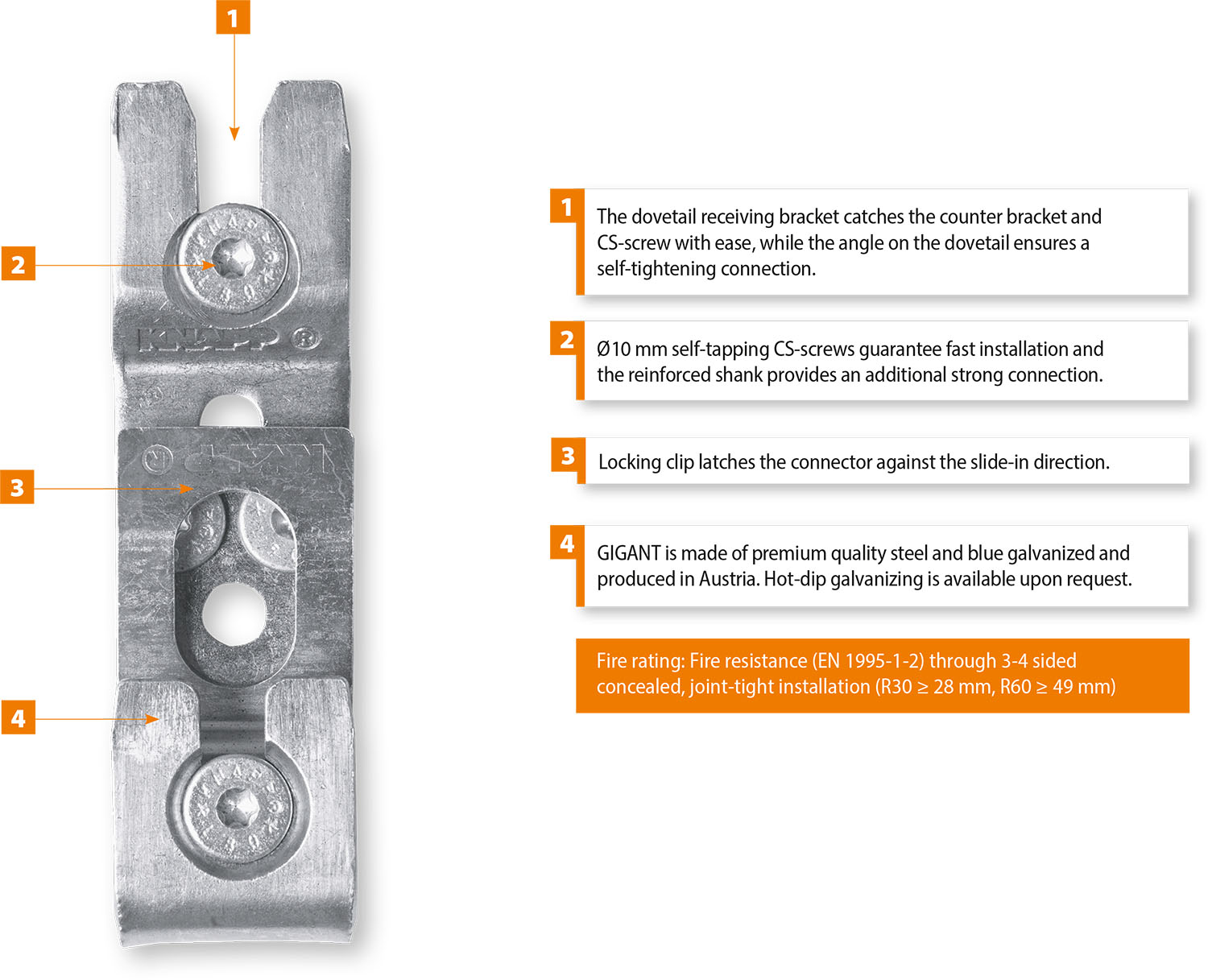

Dove-tail for an easy positioning. The starting angle brings the connector into tension and offers an easy mounting.
2
10 mm KNAPP® CS-screws with cut point for extra fast screwing and the reinforced shaft enables a forcelocked connection.
3
The clip lock offers an optional locking against
direction of insertion.
4
GIGANT is made of premium quality steel, is blue galvanised and produced in Austria. Optional available with hot-dip galvanizing.
Dove-tail for an easy positioning. The starting angle brings the connector into tension and offers an easy mounting.
10 mm KNAPP® CS-screws with cut point for extra fast screwing and the reinforced shaft enables a forcelocked connection.
The clip lock offers an optional locking against
direction of insertion.
GIGANT is made of premium quality steel, is blue galvanised and produced in Austria. Optional available with hot-dip galvanizing.

GIGANT | The connector for main and secondary beam up to 39 kN*

System advantages:

      • Highly loadable – in all directions
      • Timber width from 60 mm upwards
      • Short hooking way – applications for porch, pergola, sun room and prefabricated house construction
      • Joint sealant – self-tightening by permanent pressure
      • Fire resistance (DIN 4102-2) by 4-sided concealed mounting (R30 ≥ 20 mm, R60 ≥ 40 mm)
      • Optional locking clip – saves against the hooking direction (e.g. wind suction)
      • Dismounting and remounting possible for several times

Corrosion resistance:
Special coatings on request (e.g. near the sea).

Knapp Connector Characteristic values [kN]
F2,Rk
GIGANT 120/40
H: 3xSK10x80
J: 3xSK8x120
10,2
GIGANT 150/40
without clip lock
H: 4xSK10x80
J: 4xSK10x120
13,5
GIGANT 150/40
with clip lock
H: 4xSK10x80
J: 4xSK10x120
13,5
GIGANT 180/40
without clip lock
H: 6xSK10x80
J: 6xSK10x120
20,3
GIGANT 180/40
with clip lock
H: 6xSK10x80
J: 5xSK10x120
16,9

Charact. load carrying capacity F2,Rk in insertion direction applies only to the use of original KNAPP® cs-screws according to ETA 10/0189. Any liability is excluded if other screws are used as the framework of the European Technical Approval (ETA-10/0189) KNAPP approved screws.
